Describe an industrial structure in your own words. We compile a schema-valid IFC4 or IFC2X3 model in under three minutes.

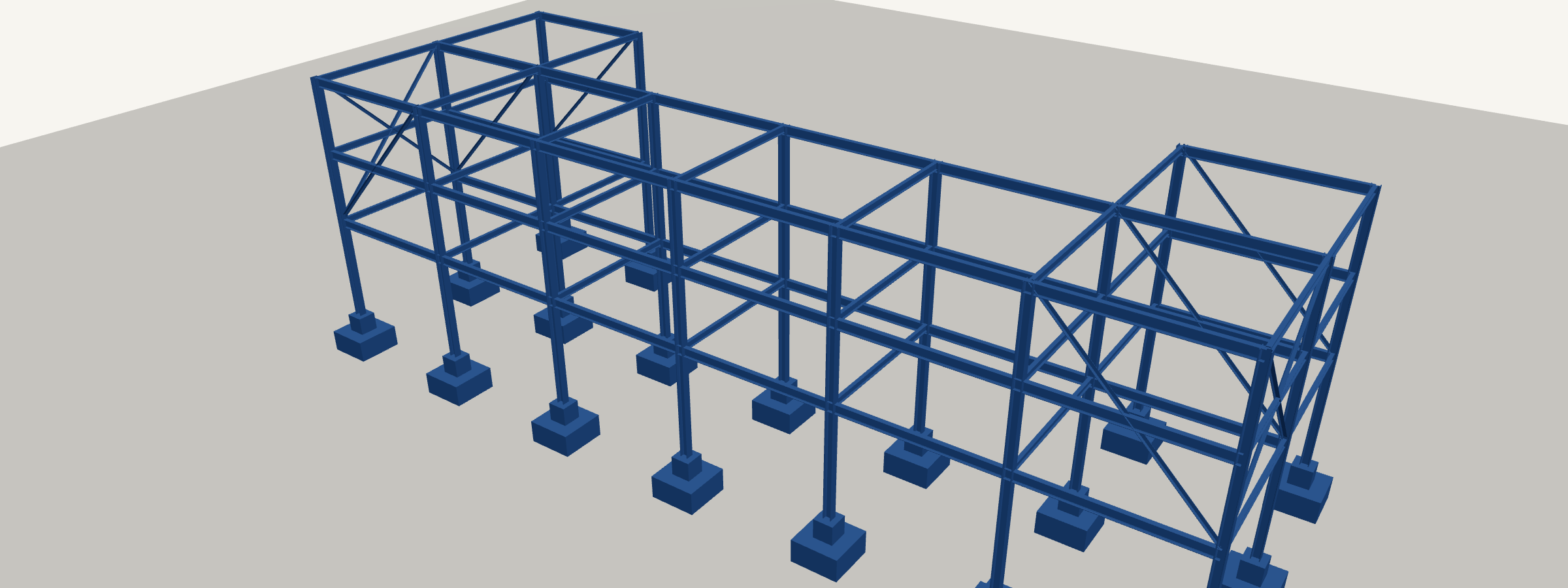

MOD.01prompt: C-shape piperack, two tiers, 6 m × 18 m footprint, S275 columns

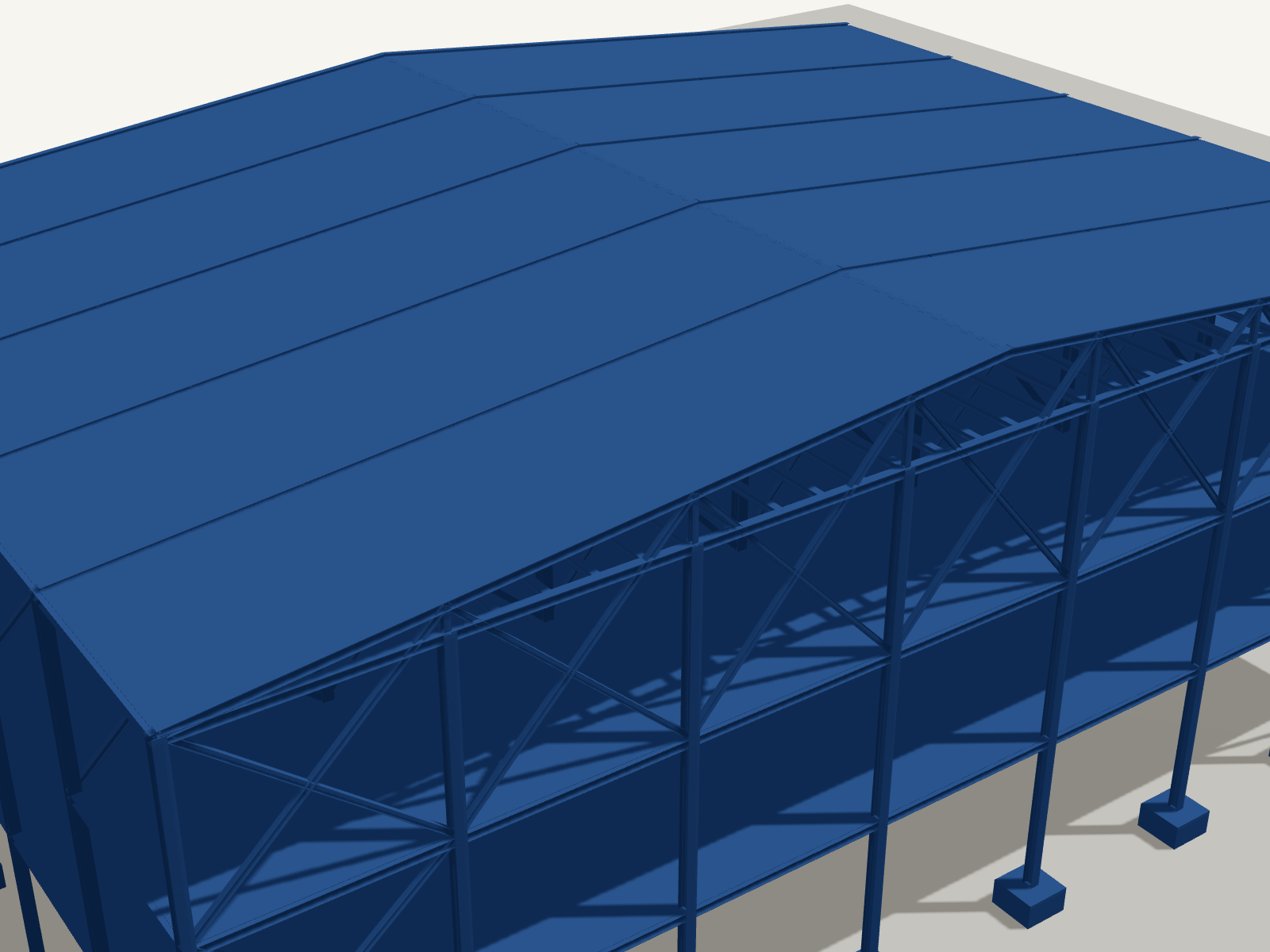

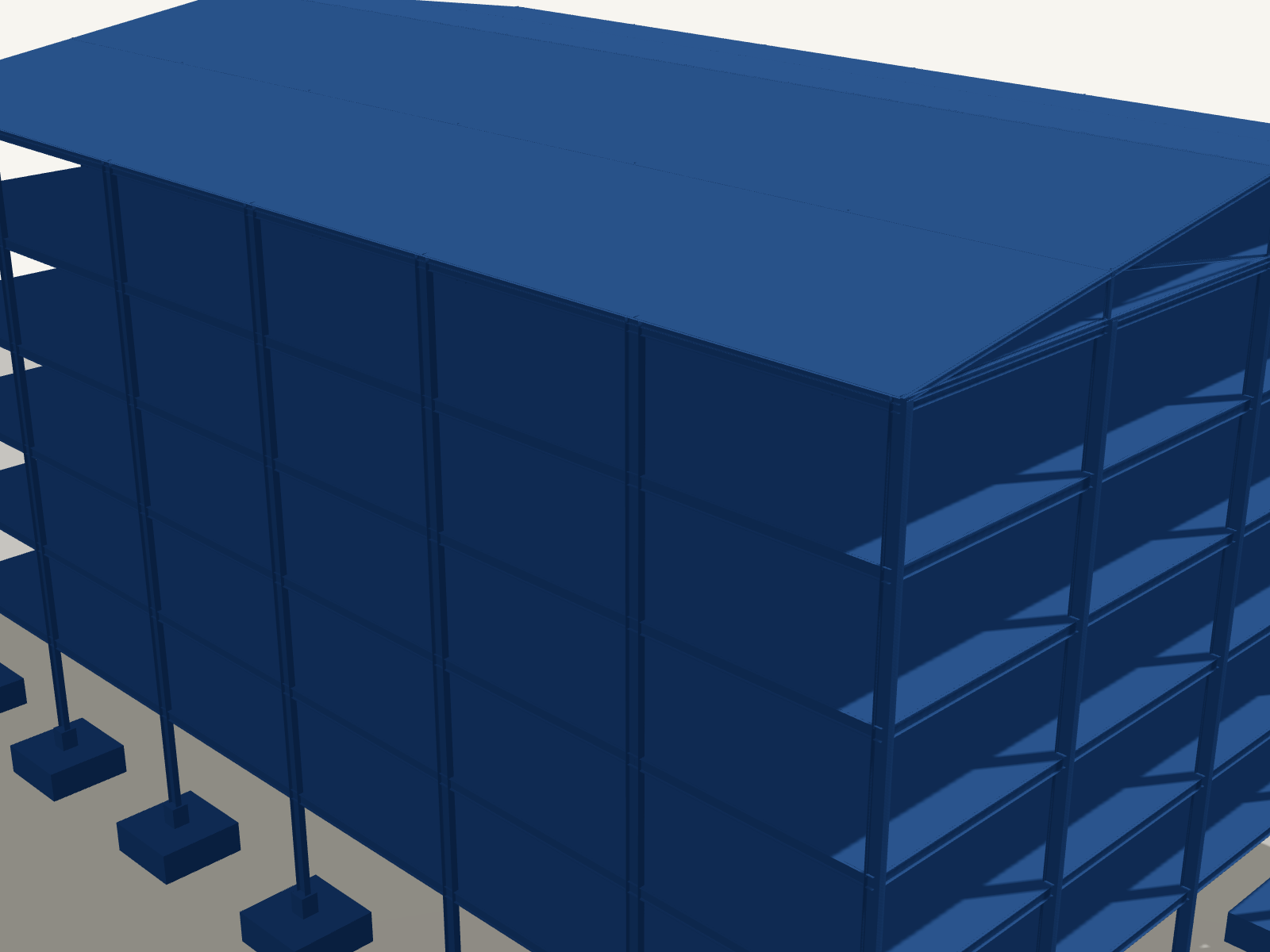

MOD.02prompt: Process building, 5 floors, 40 × 60 m, truss on 15% double slope roof, composite steel frame
MOD.03prompt: Industrial process plant, 30 × 40 m, 3 floors, material S355
MOD.04prompt: RC building, 4 stories, 20 × 20 m, flat slab, core shear walls

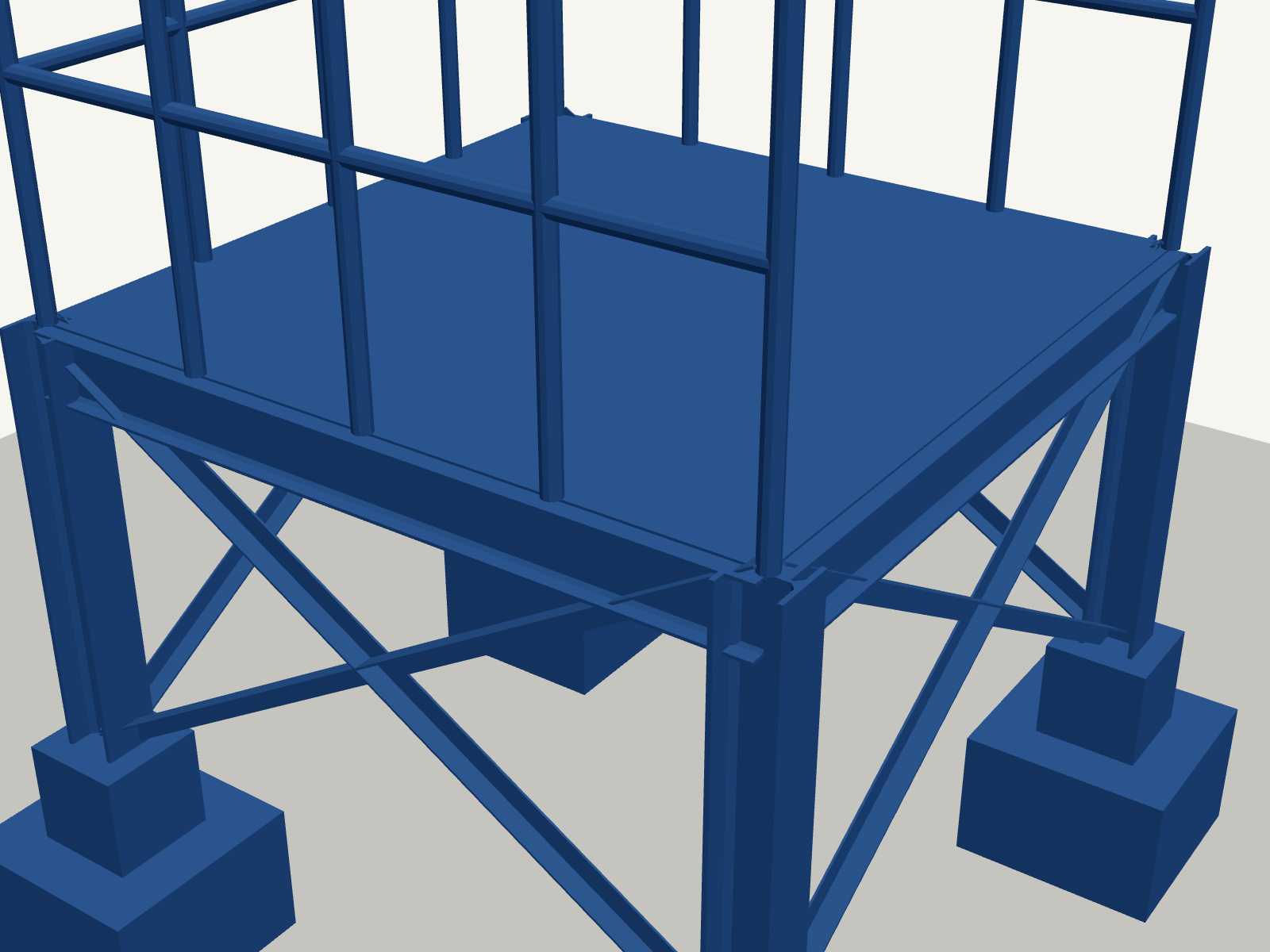

MOD.05prompt: Process access platform, 2 × 2 m, +1.2 m elev., add handrails and checker plate. Material S275
MOD.06prompt: Steel shelter, 8 × 4 m, with steel columns, roof framing and cladding panels
MOD.07prompt: RC pit, 6 × 4 m × 5 m deep. Add cover slab and ladder

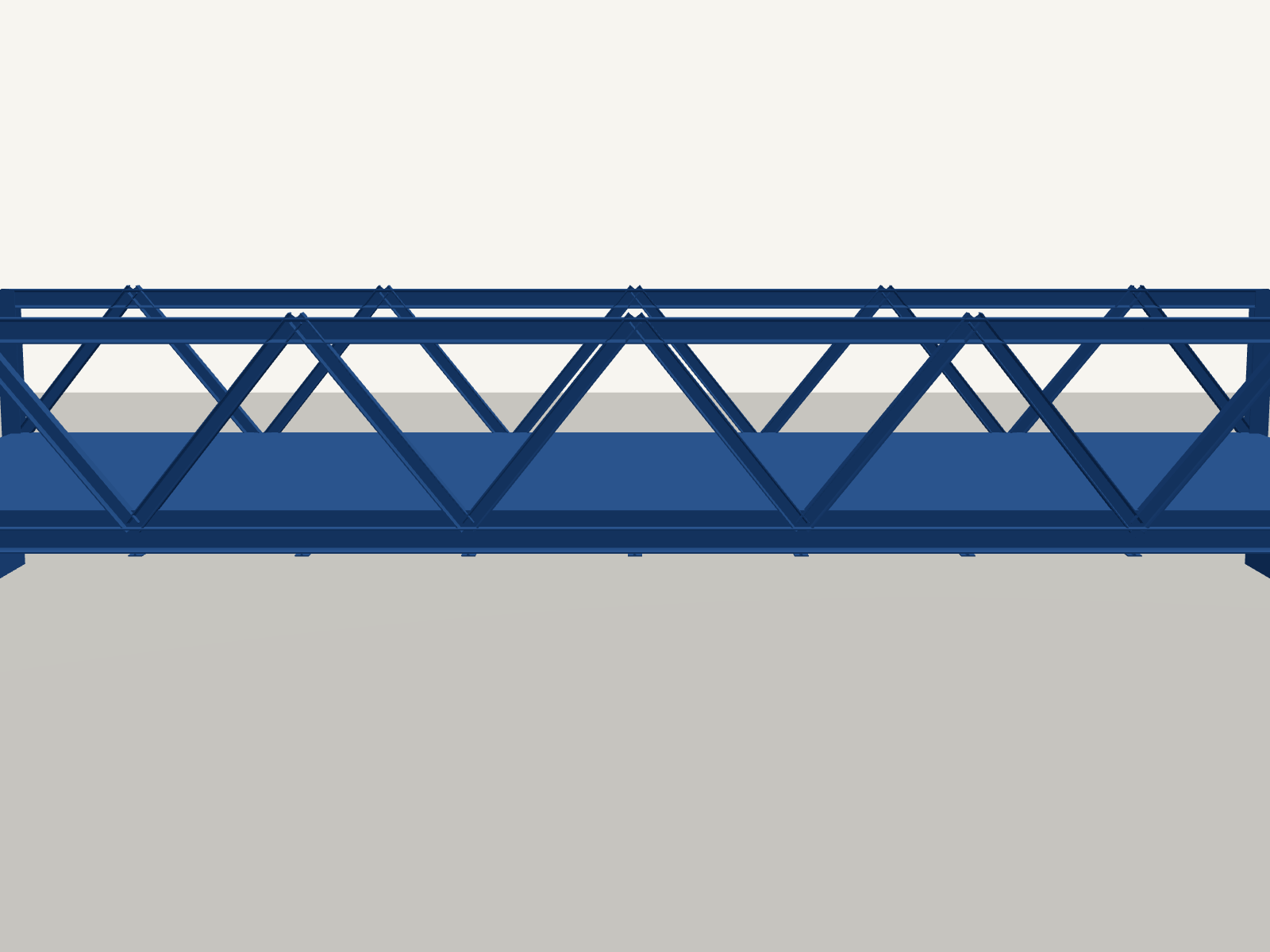

MOD.08prompt: Warren-truss pedestrian bridge, 24 m long, 8.30 m width, S355
MOD.01prompt: C-shape piperack, two tiers, 6 m × 18 m footprint, S275 columns
MOD.02prompt: Process building, 5 floors, 40 × 60 m, truss on 15% double slope roof, composite steel frame
MOD.03prompt: Industrial process plant, 30 × 40 m, 3 floors, material S355

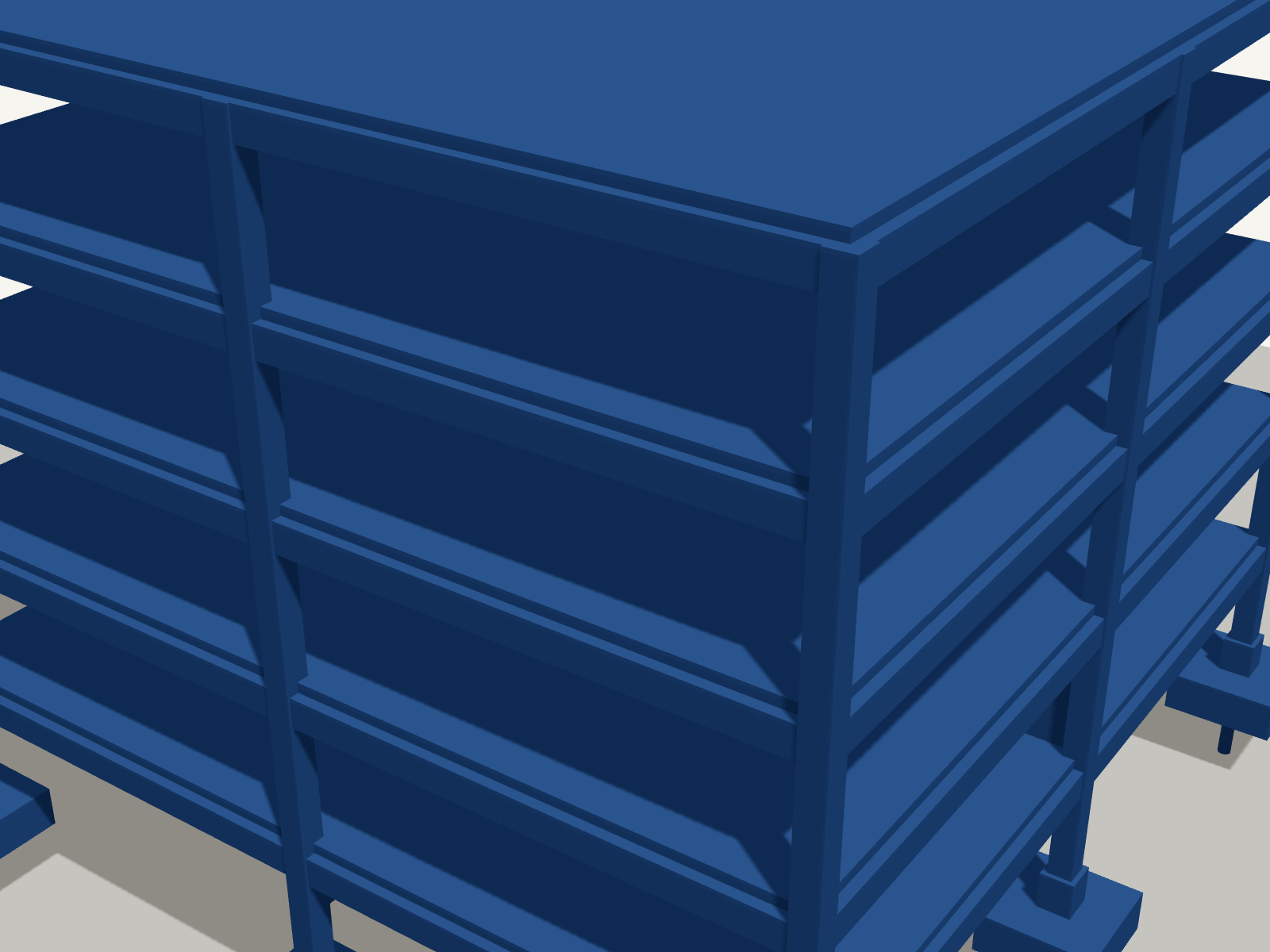

MOD.04prompt: RC building, 4 stories, 20 × 20 m, flat slab, core shear walls
MOD.05prompt: Process access platform, 2 × 2 m, +1.2 m elev., add handrails and checker plate. Material S275

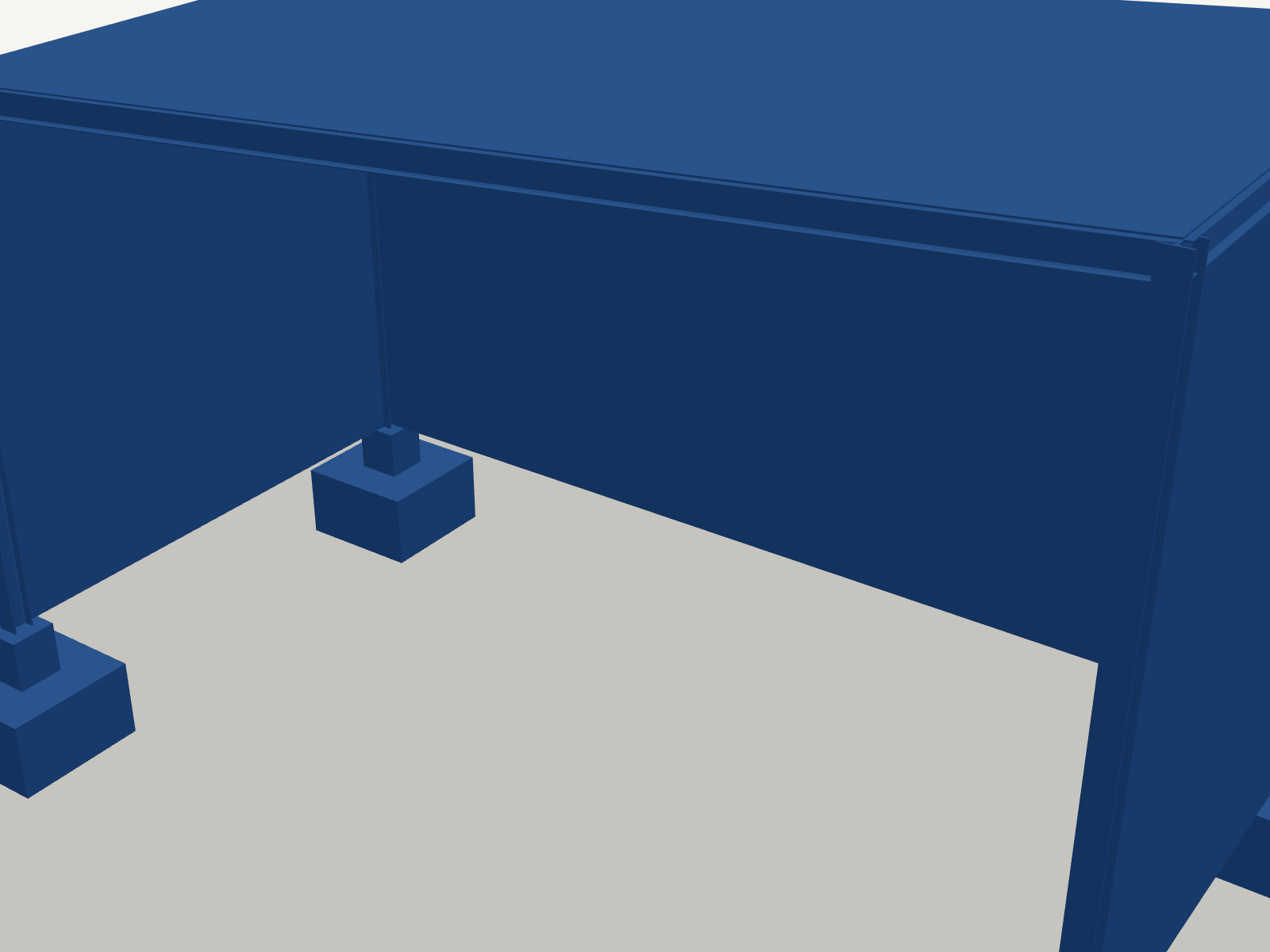

MOD.06prompt: Steel shelter, 8 × 4 m, with steel columns, roof framing and cladding panels
MOD.07prompt: RC pit, 6 × 4 m × 5 m deep. Add cover slab and ladder
MOD.08prompt: Warren-truss pedestrian bridge, 24 m long, 8.30 m width, S355
Write a prompt the way you would brief a junior engineer. “Five-bay piperack, 24 m long, two levels, S275.” As sparse or as specific as your stage requires.
Structure, profiles, materials, and foundations resolve in under five minutes. The model builds live in the integrated viewer while you tune the spec.
Download the IFC4 or IFC2X3 file plus a DXF. Import directly into Tekla, Revit, Navisworks or any BIM software. No plug-in, no desktop software.
MOD.01 / render

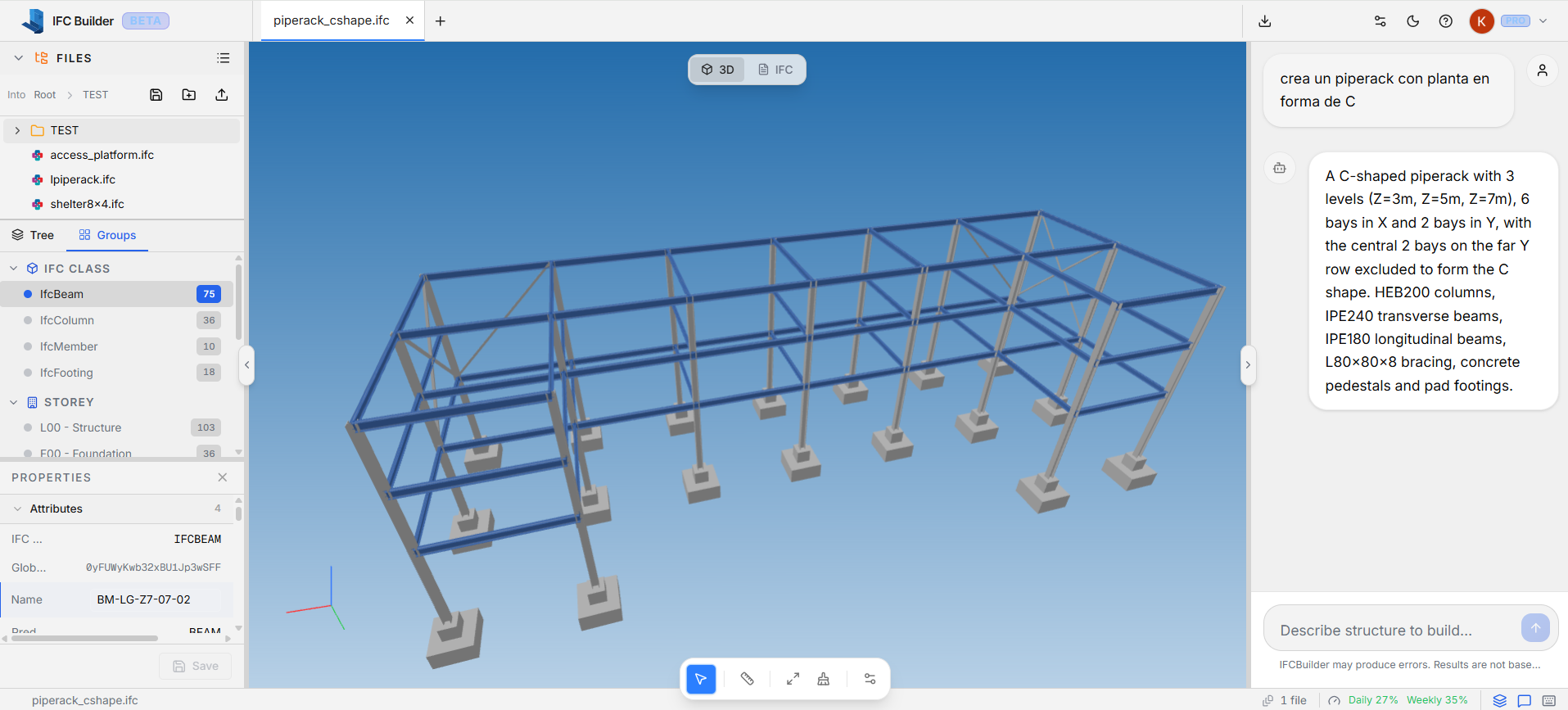

viewer · IFC 4“C-shape piperack, two tiers, 6 m × 18 m footprint, S275 columns”
Columns, rafters, bracing, base plates, and foundations generated in a single pass. Schema-valid IFC4 out of the gate.
MOD.03 / render

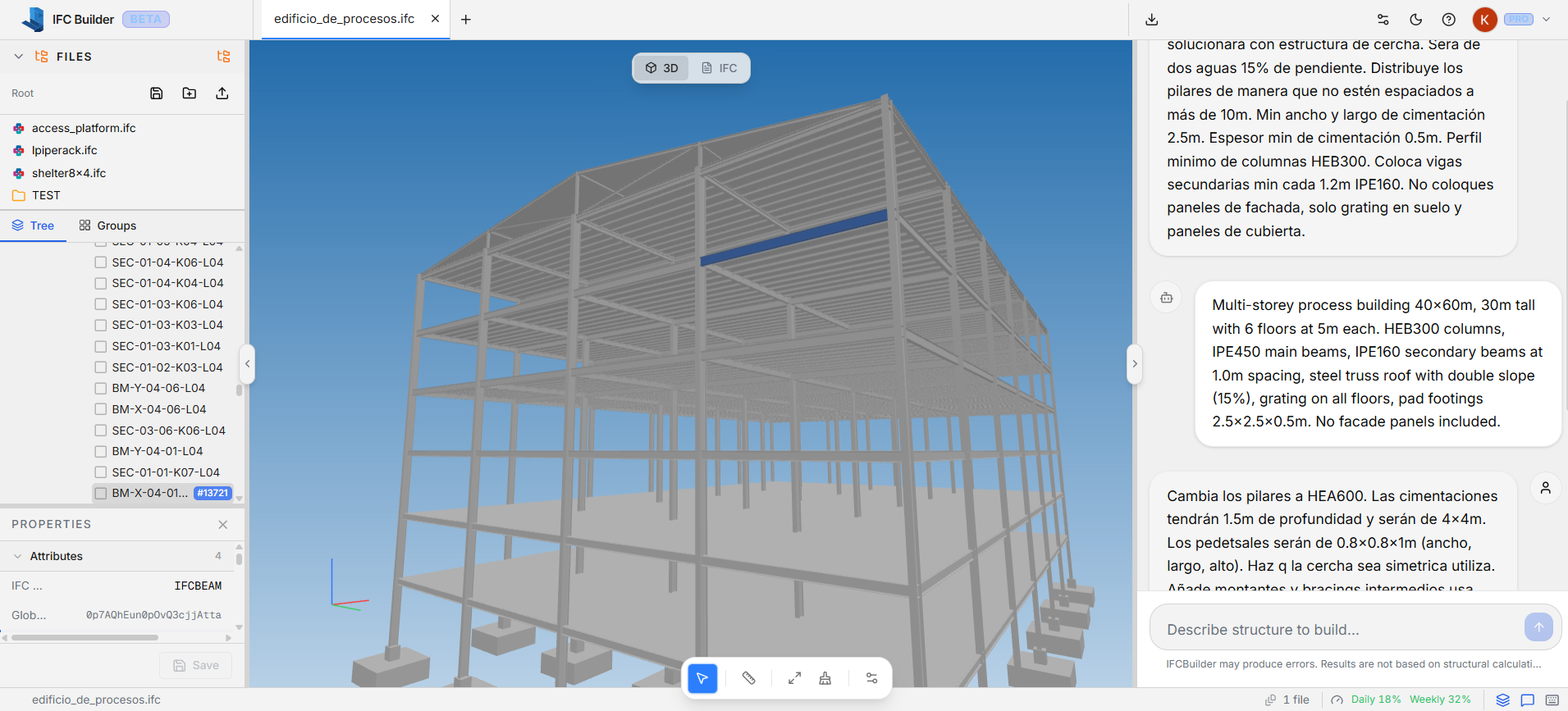

viewer · IFC 4“Industrial process plant, 30 × 40 m, 3 floors, material S355”
The integrated viewer renders the exact geometry you will open in Navisworks, Tekla or Revit. Chat to resize, relabel, rematerial. The model updates in place.
Every element hierarchy, structural profile, material assignment, and foundation conforms to ISO 16739 out of the box. Import into Tekla or Revit without a repair step.
Piperacks, shelters, platforms, steel buildings, canopies, pits. Designed by structural engineers who've spent years modelling these by hand.
Shift a level, swap S275 for S355, extend by a bay, add a walkway. The viewer reflects the change in seconds; the export stays in sync.
Download a IFC file for your federated model and a DXF for 2D documentation. No plugins, no queue, no desktop install.
Runs in the tab you already have open. Nothing to provision, nothing to license per seat, nothing to explain to IT.
Your library lives with your account. Open any session, continue the conversation.
HEA, HEB, HEM, IPE, UPN, angles, channels. S235, S275, S355. Metric dimensions. Built for how European engineers actually work.
Complement the BIM tools you already own. Use IFC Builder for the early-stage generation, then keep refining in Tekla, Revit, Archicad on the next stages.
Single plan. All features. No hidden fees.
Yes. Every model is IFC4 or IFC2X3, schema-valid on export. We test nightly against Tekla Structures and Revit import. The DXF companion covers your 2D documentation.
European and American profiles and materials.
Yes. Chat with the model. Extend by a bay, shift a level, swap a material grade, add bracing. The viewer and the export stay in lockstep. You don't hand-edit IFC, the AI does.
No, and intentionally so. IFC Builder does the early-stage generation in minutes, reducing the time and effort required for initial modeling.
Limited generations per month, full 3D viewer access, up to two saved models. Enough to validate the tool on a real project before upgrading.
Your models and chat history are stored against your account. You can delete any model or wipe the library at any time from your workspace.
Contact
Questions about a specific use case, pricing, or an integration? Send us a message and we'll get back to you.
